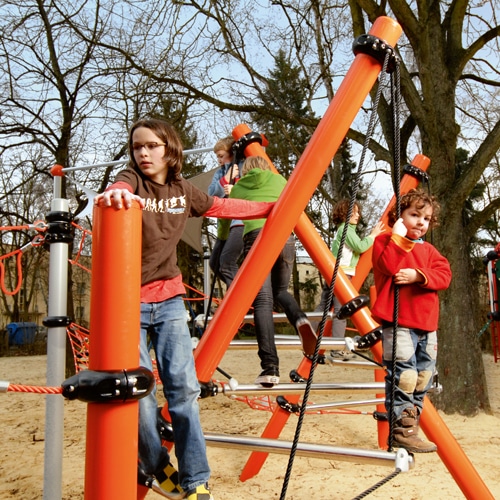

Sculptura.02

Sculptura is the “sloping” addition to the otherwise straight Terranos range.

A Sculptura element extends with three sloping Terranos posts across the diagonal of a 3 x 3 m Terranos grid. The centre posts always slope in the opposite direction to the other two outer posts. The diagonal terminates with one straight Terranos post respectively.

Perspective

         Top view

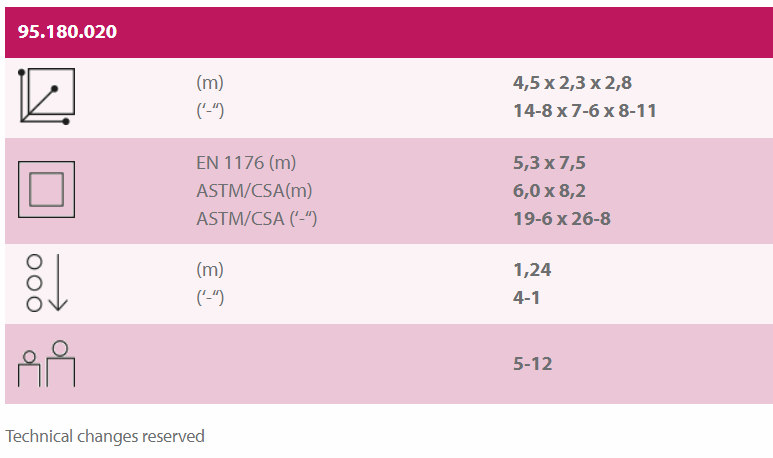

Specs

Download

Specification sheet

2D AutoCAD dwg drawing

If the .dwg download opens in a new window, please trigger the download with a right mouse click (Save under)
